(Be First to review)

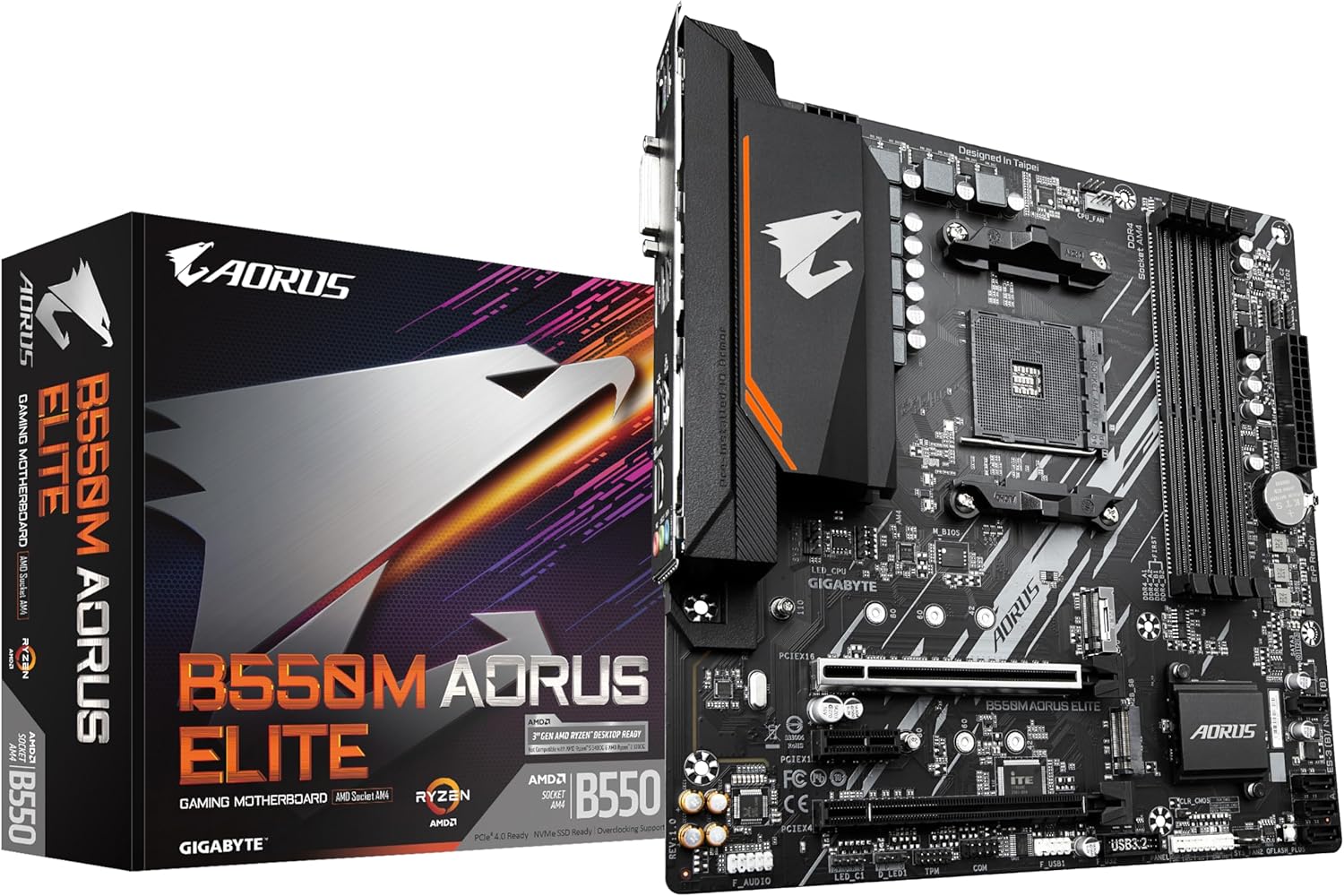

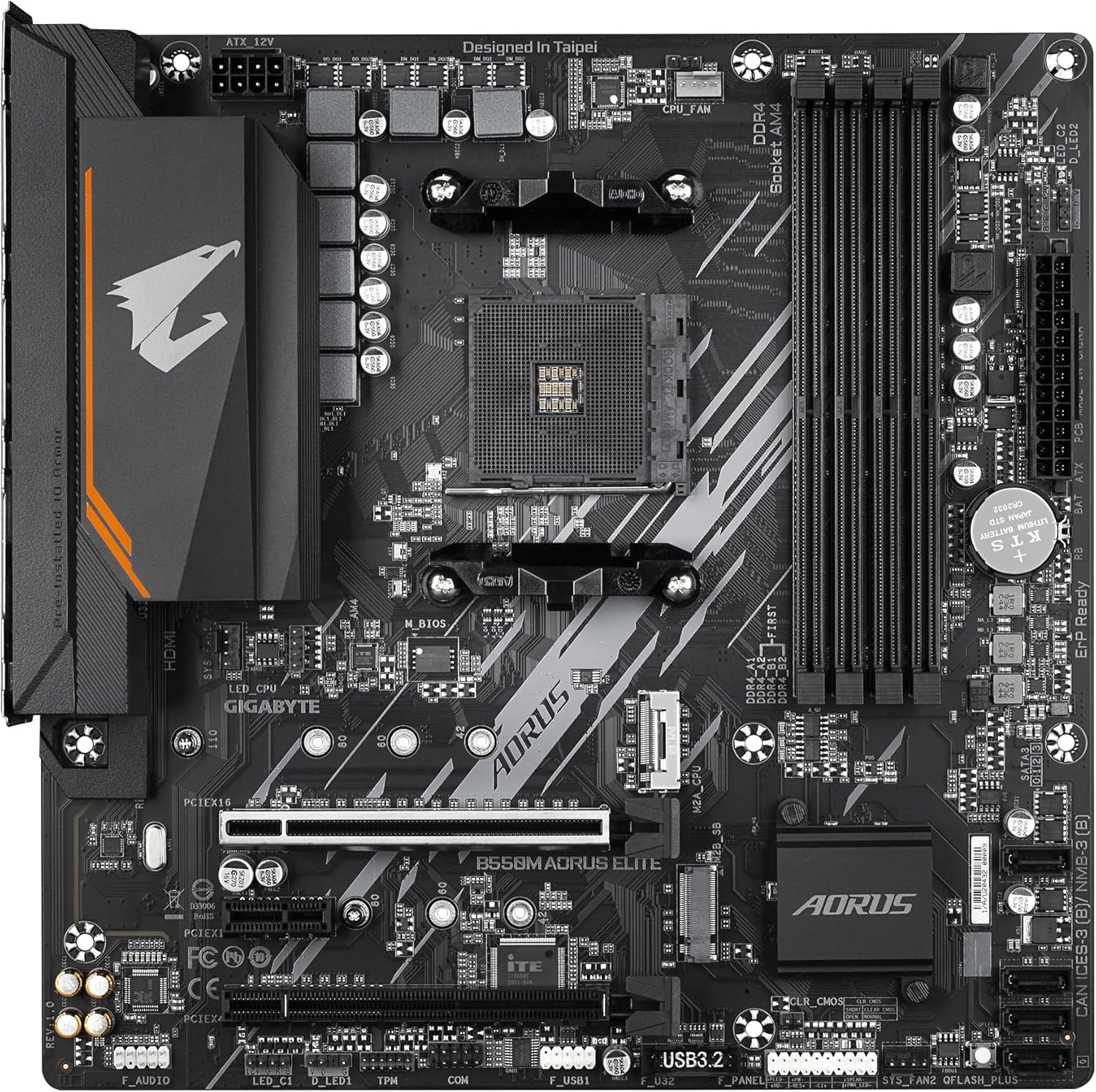

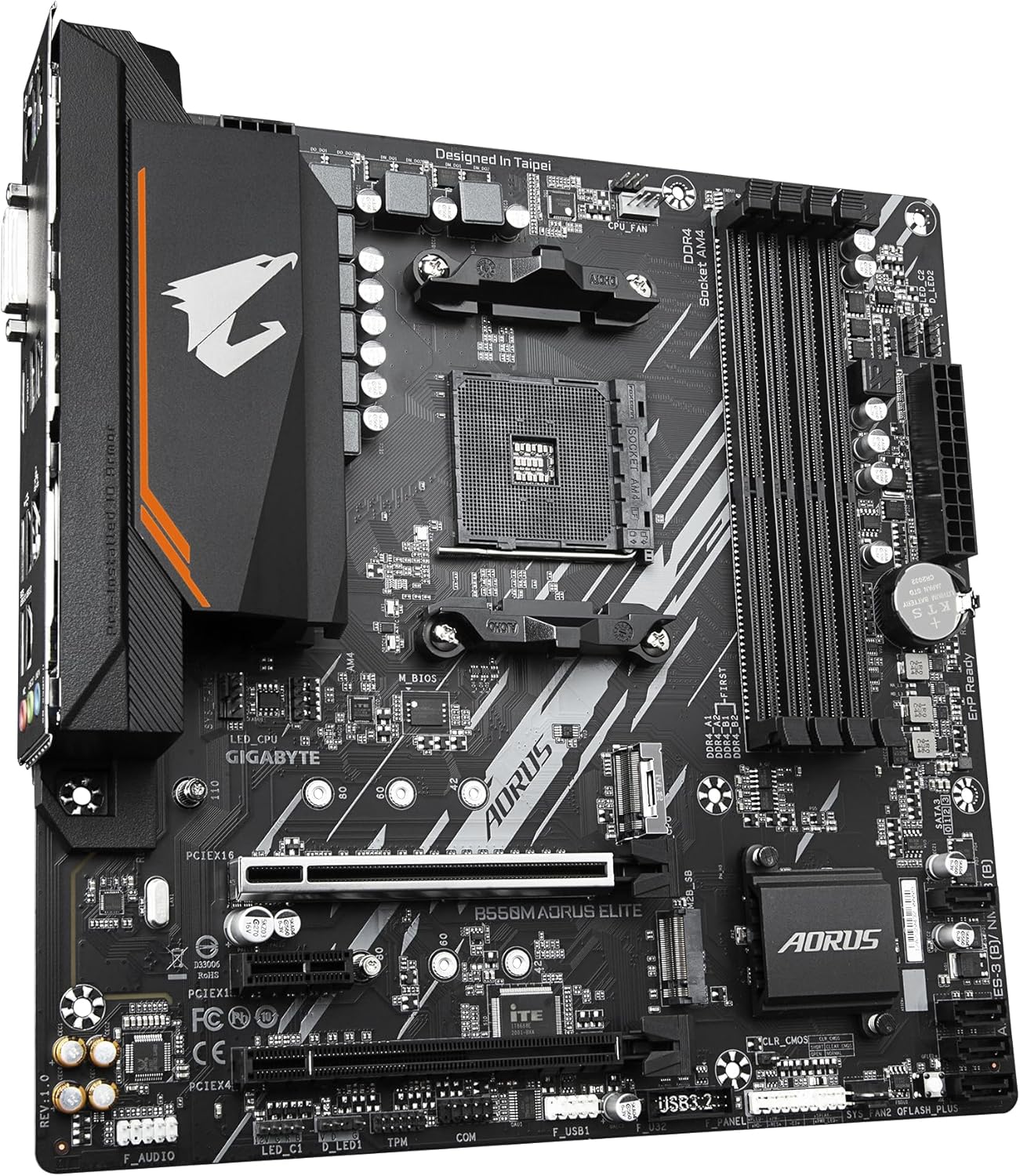

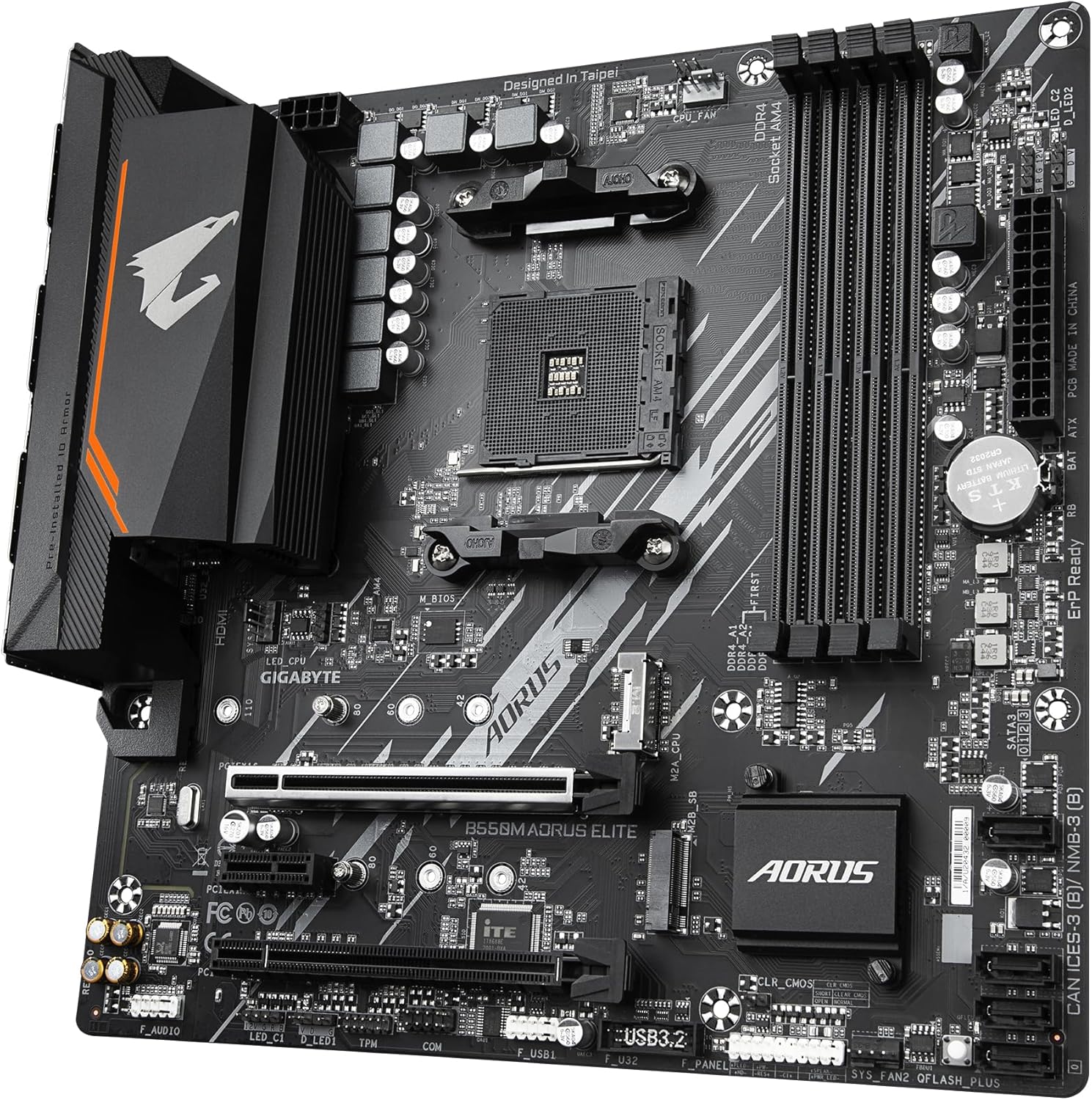

Gigabyte B550M AORUS Elite Motherboard | B550 Chipset | AMD AM4 Socket | Micro-ATX | DDR4 Support
Rs. 18,899
Rs. 18,899
Rs. 29,999
37% OFF
Available coupons
Quantity:
1
- Chipset: AMD B550
- Form Factor: Micro ATX (24.4 cm x 24.4 cm)
- Maximum Capacity: Up to 128 GB (32 GB per DIMM)
- Architecture: Dual channel
See full speces
Store Pickup
Available Today at Zolpa Store
Free Express Delivery
Available for delivery within 2-3 business days
Gigabyte B550M AORUS Elite Motherboard | B550 Chipset | AMD AM4 Socket | Micro-ATX | DDR4 Support
Rs. 18,899
Rs. 29,999
Full Specification
General Information
Brand
GIGABYTE
Model
B550M Gaming X AX
Chipset
AMD B550
Processor Support
Supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series, and Ryzen™ 3000 G-Series processors
Form Factor
Micro ATX (24.4 cm x 22.5 cm)
BIOS
AMI UEFI BIOS, 256 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Support
Windows 11 64-bit, Windows 10 64-bit
Special Features
Q-Flash, Q-Flash Plus, Smart Fan 6, PCIe and M.2 EZ-Latch
Audio & Network
Audio Chipset
Realtek® High Definition Audio
Audio Channels
Supports 2/4/5.1/7.1-channel audio output
LAN
Realtek® 2.5GbE LAN chip (supports 2.5 Gbps/1 Gbps/100 Mbps)
Power, Cooling & Monitoring
Power Connectors
24-pin ATX main power, 8-pin ATX 12V power, 1 CPU fan header, 2 system fan headers, voltage and temperature detection, fan speed control, overheating and fan fail warnings.
Memory Support
Memory Type
DDR4
DIMM Slots
4 x DDR4 DIMM sockets
Maximum Capacity
Up to 128 GB (32 GB per DIMM)
Supported Frequencies
OC: DDR4 3400 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400 / 4600 / 4733 MHz
Architecture
Dual channel
Memory Features
ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode; actual ECC mode depends on CPU)
Integrated Graphics
Display Outputs
1 x DVI-D port (max resolution: 1920x1200@60 Hz) – does not support D-Sub via adapter, 1 x HDMI port (max resolution: 4096x2160@60 Hz) – HDMI 2.1, HDCP 2.3, HDR supported
Connectivity & Expansion
Expansion Slots
From CPU: 1 x PCI Express x16 slot (PCIEX16) PCIe 4.0 x16 supported by Ryzen™ 5000/3000 Series PCIe 3.0 x16 supported by Ryzen™ 5000 G/4000 G-Series, From Chipset: 1 x PCI Express x16 slot (PCIEX4) – PCIe 3.0 x4 1 x PCI Express x1 slot (PCIEX1) – PCIe 3.0 x1
RAID Support
RAID 0, RAID 1, RAID 10
USB Interfaces
Back Panel
4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
Internal Headers
1 x USB 3.2 Gen 1 header (2 ports), 1 x USB 2.0/1.1 header (2 ports)
Internal I/O & Miscellaneous Headers
Internal I/O & Miscellaneous Headers
1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x system fan headers, 4 x SATA 6Gb/s connectors, 1 x USB 2.0/1.1 header

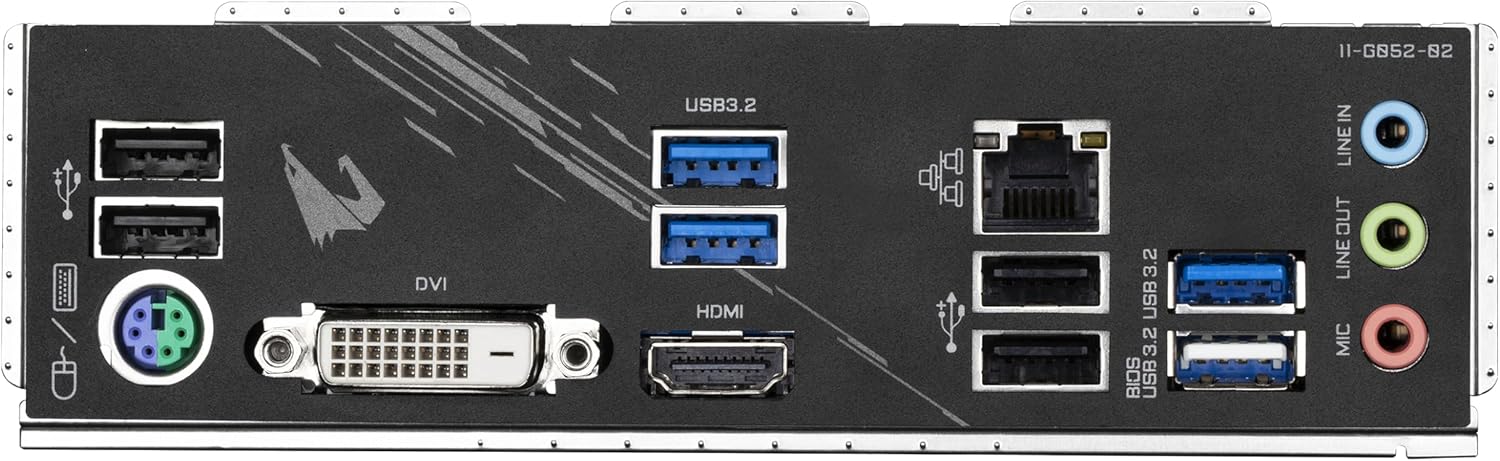

Back Panel Ports
Back Panel Ports
1 x PS/2 keyboard/mouse combo port, 1 x HDMI port, 1 x RJ-45 LAN port, 3 x Audio jacks (Line In / Line Out / Mic In), 1 x DVI-D port, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
Dimensions & Build
Form Factor
Micro ATX
Dimensions
24.4 cm x 24.4 cm
