(Be First to review)

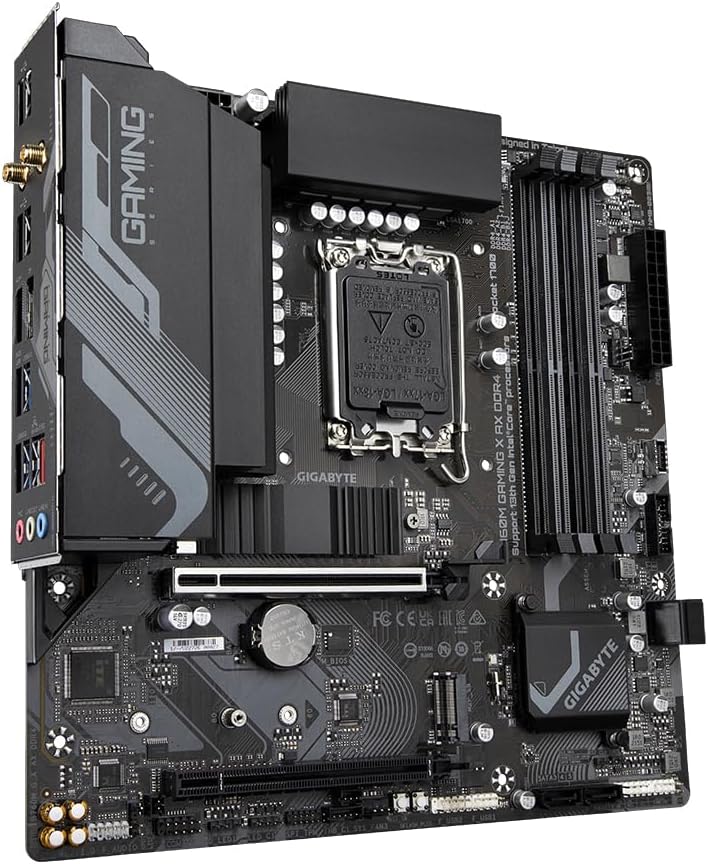

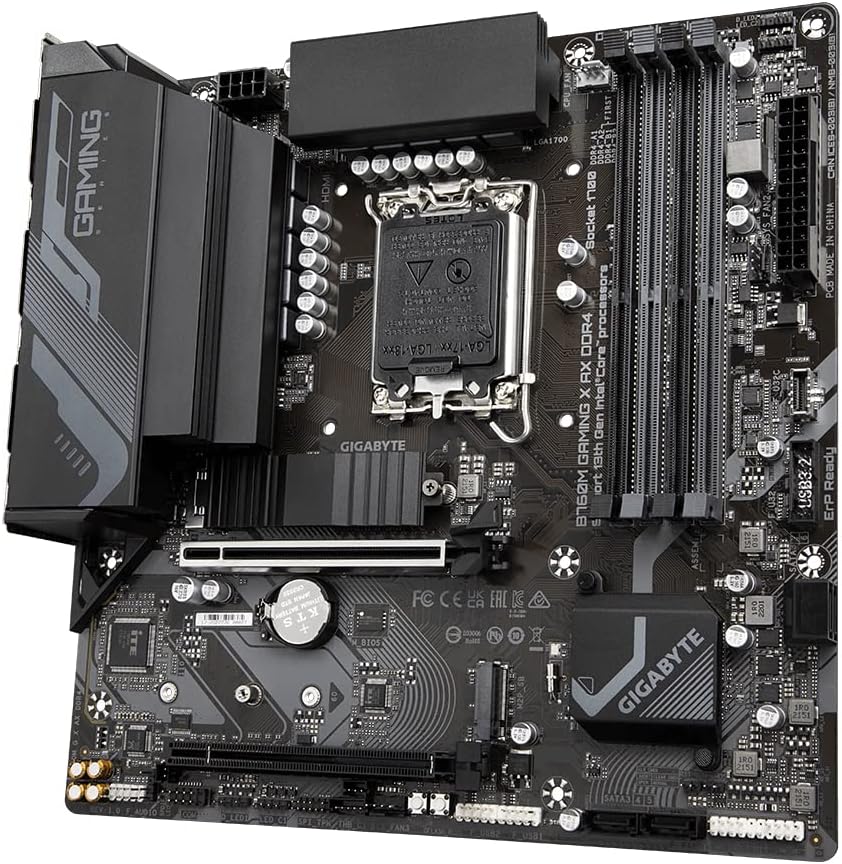

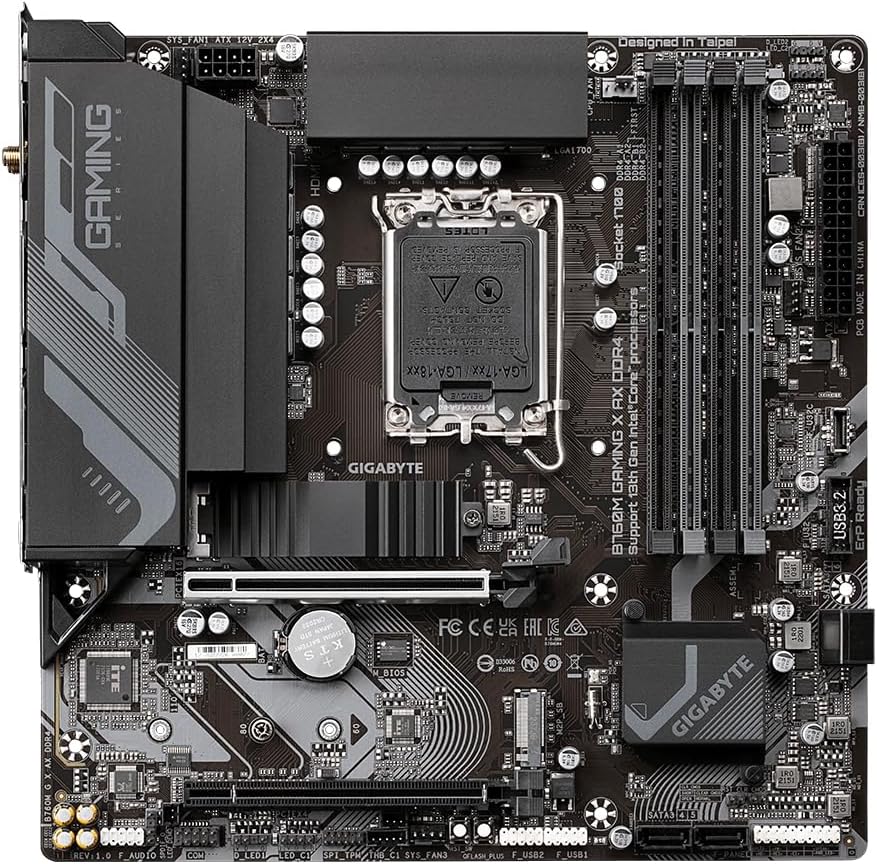

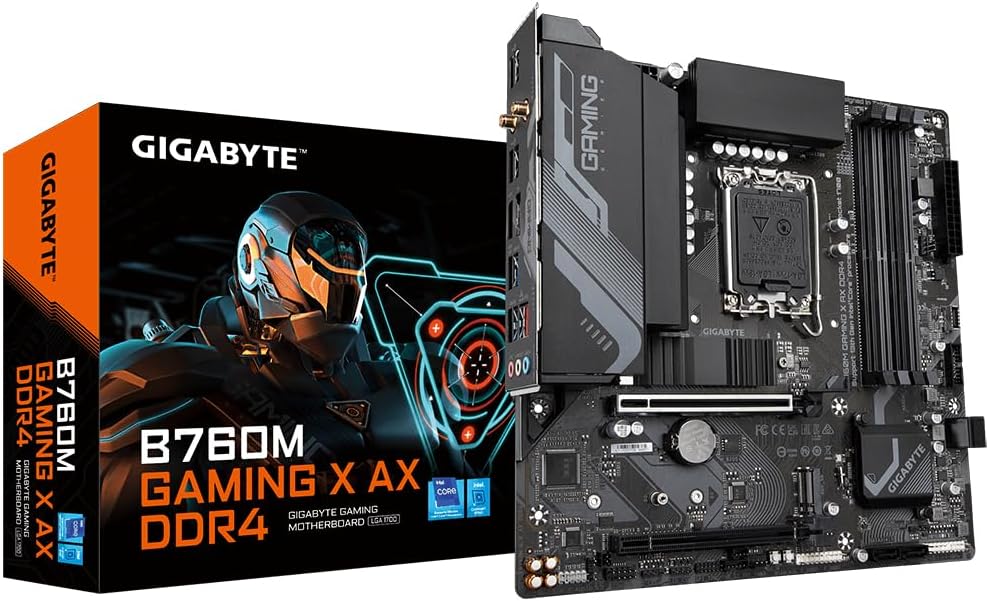

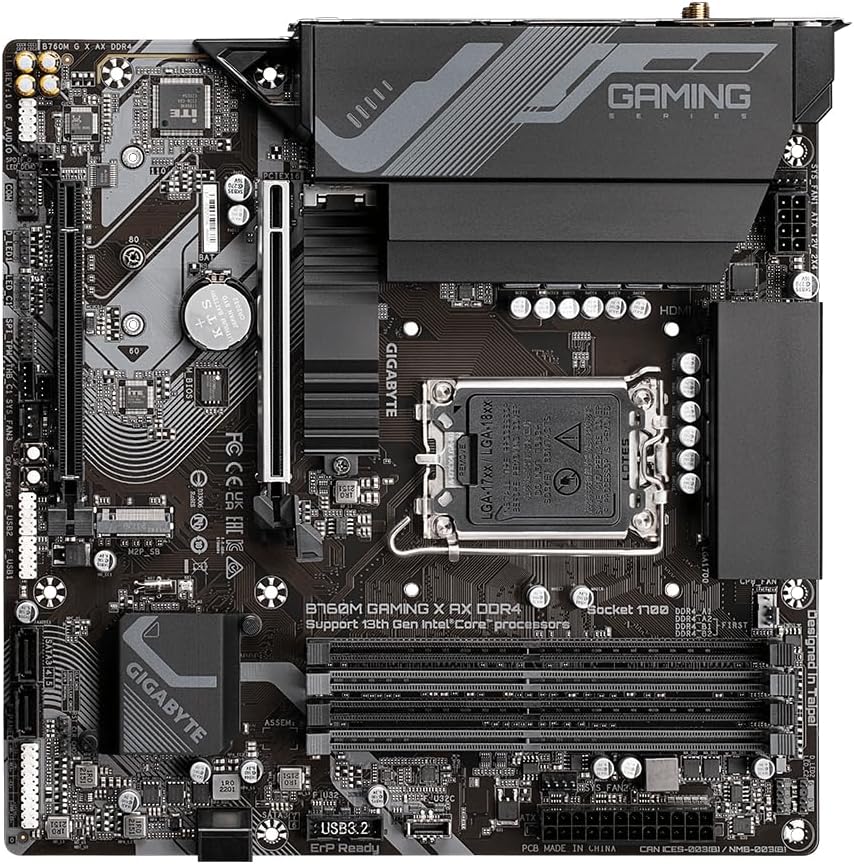

GIGABYTE B760M Gaming X AX DDR4 Micro-ATX Motherboard | Intel LGA 1700 Socket | Supports Up to 128GB DDR4 RAM | Dual PCIe x16 Slots | Dual M.2 Slots | 4x SATA Ports | USB 3.2 | Wi-Fi Ready
Rs. 18,699
Rs. 18,699
Rs. 24,998
25% OFF
Available coupons
Quantity:
1
- Chipset: Intel® B760 Express Chipset
- Form Factor: Micro ATX (24.4 cm x 22.5 cm)
- Maximum Capacity: Up to 128 GB (32 GB per module)
- Architecture: Dual channel
See full speces
Store Pickup
Available Today at Zolpa Store
Free Express Delivery
Available for delivery within 2-3 business days
GIGABYTE B760M Gaming X AX DDR4 Micro-ATX Motherboard | Intel LGA 1700 Socket | Supports Up to 128GB DDR4 RAM | Dual PCIe x16 Slots | Dual M.2 Slots | 4x SATA Ports | USB 3.2 | Wi-Fi Ready
Rs. 18,699
Rs. 24,998
Full Specification
General Information
Brand
GIGABYTE
Model
B760M Gaming X AX DDR4
Chipset
Intel® B760 Express Chipset
Processor Support
Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors for LGA1700 socket
Form Factor
Micro ATX (24.4 cm x 22.5 cm)
BIOS
AMI UEFI BIOS, 128 Mbit flash
Operating System Support
Windows 11 64-bit, Windows 10 64-bit
Special Features
Q-Flash, Q-Flash Plus, Smart Fan 6, PCIe and M.2 EZ-Latch
Audio & Network
Audio Chipset
Realtek® Audio CODEC
Audio Channels
High Definition Audio, supporting 2/4/5.1/7.1-channel output
LAN
Realtek® 2.5GbE LAN chip (supports 2.5 Gbps/1 Gbps/100 Mbps)
Power, Cooling & Monitoring
Power Connectors
1 x 24-pin ATX, 1 x 8-pin ATX 12V
Fan Headers
1 x CPU fan, 3 x system fan headers
Monitoring
Voltage, temperature, fan speed, water cooling flow rate, fan fail warning, fan speed control (Smart Fan 6)
Memory Support
Memory Type
DDR4
DIMM Slots
2 x DDR4 DIMM sockets
Maximum Capacity
Up to 128 GB (32 GB per DIMM)
Supported Frequencies
OC Modes – DDR4 5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300 MHz Standard – DDR4 3200/3000/2933/2666/2400/2133 MHz
Architecture
Dual channel
Memory Features
Supports ECC UDIMM (non-ECC mode), Non-ECC UDIMM, Intel® Extreme Memory Profile (XMP)
Integrated Graphics
Integrated GPU
Intel® UHD Graphics (CPU dependent)
Display Outputs
1 x D-Sub (max 1920x1200@60Hz), 1 x HDMI 2.1 (max 4096x2160@60Hz, HDCP 2.3), 1 x DisplayPort 1.2 (max 4096x2304@60Hz, HDCP 2.3)
Connectivity & Expansion
Expansion Slots
1 x PCI Express x16 (PCIe 4.0, CPU lanes, x16 mode) – supports GPU or NVMe SSD, 1 x PCI Express x1 (PCIe 3.0, Chipset lanes)
Storage Interfaces
M.2 Slots: 1 x M.2 (M2A_CPU) – PCIe 4.0 x4/x2, 2280 (CPU lanes) , 1 x M.2 (M2P_SB) – PCIe 4.0 x4/x2, 2280 (Chipset lanes)
SATA Ports
4 x SATA 6Gb/s
RAID Support
RAID 0, 1, 5, and 10 for SATA
USB Interfaces
Back Panel
1 x USB Type-C® (USB 3.2 Gen 1), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
Internal Headers
1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0/1.1 headers (supports 4 ports)
Internal I/O & Miscellaneous Headers
Internal I/O & Miscellaneous Headers
1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button
Back Panel Ports
Back Panel Ports
1 x PS/2 keyboard/mouse combo port, 1 x HDMI port, 1 x RJ-45 LAN port, 3 x Audio jacks (Line In / Line Out / Mic In)
Dimensions & Build
Form Factor
Micro ATX
Dimensions
24.4 cm x 22.5 cm
I/O Controller
iTE® I/O Controller Chip
