Chipset: AMD A520
Form Factor: Micro ATX (24.4 cm x 24.4 cm)
Maximum Capacity: Up to 128 GB (32 GB per DIMM)
Architecture: Dual channel

See full speces

Store Pickup

Available Today at Zolpa Store

Free Express Delivery

Available for delivery within 2-3 business days

Rs. 13,499

Rs. 19,999

Full Specification

General Information

Brand

GIGABYTE

Model

A520M Gaming X with Wireless Support

Chipset

AMD A520

Processor Support

Supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series, and Ryzen™ 3000 G-Series processors

Form Factor

Micro ATX (24.4 cm x 22.5 cm)

BIOS

AMI UEFI BIOS, 128 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System Support

Windows 11 64-bit, Windows 10 64-bit

Special Features

Q-Flash, Q-Flash Plus

Audio & Network

Audio Chipset

Realtek® High Definition Audio

Audio Channels

Supports 2/4/5.1/7.1-channel audio output

LAN

Realtek® 2.5GbE LAN chip (supports 2.5 Gbps/1 Gbps/100 Mbps)

Power, Cooling & Monitoring

Power Connectors

24-pin ATX main power, 8-pin ATX 12V power, 1 CPU fan header, 2 system fan headers, voltage and temperature detection, fan speed control, overheating and fan fail warnings.

Memory Support

Memory Type

DDR4

DIMM Slots

4 x DDR4 DIMM sockets

Maximum Capacity

Up to 128 GB (32 GB per DIMM)

Supported Frequencies

With Ryzen™ 5000 G / 5000 / 3rd Gen Ryzen™: DDR4 2133 / 2400 / 2667 / 2933 / 3200 / 3300(O.C.) / 3333(O.C.) / 3400(O.C.) / 3466(O.C.) / 3600(O.C.) / 3733(O.C.) / 3800(O.C.) / 3866(O.C.) / 4000(O.C.) / 4400(O.C.), With 3rd Gen Ryzen™ with Radeon™ Graphics: DDR4 2133 / 2400 / 2667 / 2933 / 3200 / 3333(O.C.) / 3600(O.C.) / 4000(O.C.) / 4400(O.C.) / 4600(O.C.) / 4733(O.C.)

Architecture

Dual channel

Memory Features

ECC Un-buffered DIMM 1Rx8/2Rx8 Non-ECC Support: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

Integrated Graphics

Display Outputs

1 x DVI-D port (max resolution: 1920x1200@60 Hz) – does not support D-Sub via adapter, 1 x HDMI port (max resolution: 4096x2160@60 Hz) – HDMI 2.1, HDCP 2.3, HDR supported, 1 x DisplayPort (max resolution: 5120x2880@60 Hz) – DisplayPort 1.4, HDCP 2.3, HDR supported

Connectivity & Expansion

Expansion Slots

From CPU: 1 x PCI Express x16 slot – PCIe 3.0 x16, From Chipset: 2 x PCI Express x1 slots – PCIe 3.0

USB Interfaces

Back Panel

2 x USB 2.0/1.1, 4 x USB 3.2 Gen 1

Internal Headers

1 x USB 3.2 Gen 1 header (2 ports), 1 x USB 2.0/1.1 header (2 ports)

Internal I/O & Miscellaneous Headers

1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x system fan headers, 4 x SATA 6Gb/s connectors

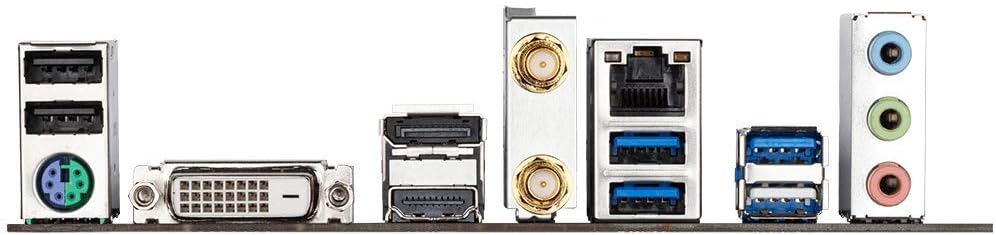

Back Panel Ports

1 x PS/2 keyboard/mouse combo port, 1 x HDMI port, 1 x RJ-45 LAN port, 1 x DVI-D port, 4 x USB 3.2 Gen 1 ports, 1 x DisplayPort, 2 x SMA antenna connectors (1T1R), 2 x USB 2.0/1.1 ports, 3 x audio jacks (Line In, Line Out, Mic In)
